LB 2800 F

Article No. : LB-2800F

Frame-Based 120 Gallons/Hr with Optional Automated Controls



  • Product Information
  • Specifications
  • Downloads
  • Description

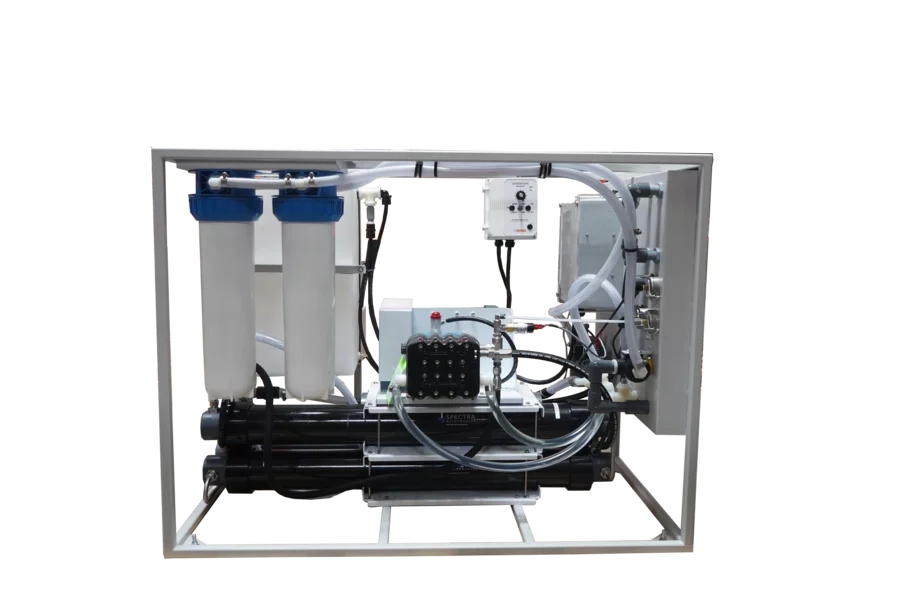

    The LB 2800 F is an analog desalination unit that is built using the patented Spectra Pearson Pump™ which allows for energy efficiencies comparable to large scale industrial desalination plants. The LB 2800 F is a turnkey solution producing 120 gallons/hour (444 Liters/hour) of fresh potable water from fresh, brackish or seawater sources.  These units are available with an optional custom built pc board controller for fully automated operation.  The LB 2800 F systems are completely integrated into a stainless steel frame and factory tested to rigid performance specification.The Pearson Pump™ is a breakthrough in pump design, combining a high-pressure piston pump with built-in energy recovery. The energy normally wasted in the high-pressure brine stream is recovered, saving up to 75% of the power required for a standard reverse osmosis system. The Pearson Pump’s™ “hydraulically locked” recovery rate allows the system to produce the full rated volume of water from virtually any water source, without the user making any changes to the system. Standard systems require operator adjustments as the pressure changes, but our fixed recovery rate system eliminates the need for operator input and prevents membrane damage.The LB 2800 F is contained within a rugged 304 powder coated stainless steel frame, pre-plumbed and tested with all components. It includes is a built-in permeate flush tank which doubles as a clean in place tank by simply turning the service valves.All landbased systems require a low pressure feed pump (not included) based on your site specific requirements.  Depending on the quality of the feed water available on your site media filters may be also be required to allow the prefilters to last for a reasonable amount of time.
    Water source:Salt water
    Group size:>10
    Usage:daily
    Effective against:Salt
    Product category desalination:Land based, stationary
    Output/hour:116
    System type:analog
    Output per Time (gal/L):116 gal/h (444 l)
    Salt rejection:99.40%
    Weight:475 lbs (216 kg)
    Usage:1200w
